Silicone Rubber Self Fusing Electrical Tape meeting A-A-59163 / MIL-I-46852 & MIL-I-22444 Specifications

silicone rubber self fusing tape mili46852 aa59163

Backshell Clamp Garmin Silicone Bushing Tape

Aircraft Powerplant Aviation Silicone Tape

General characteristics common to all three specifications

-65°F to +500°F / -54°C to +260°C Continuous Exposure: Higher Intermittent

FlameShield™ rectangular (Type I) and triangular (Type II) profile silicone rubber self-fusing self-amalgamating compression tapes meeting various OEM manufacturer's and A-A-59163, Mil-I-46852 or Mil-I-22444 specification are used for a variety of critical electrical wiring and cable splicing and protection jobs. Especially suited for aviation and marine environments, as well as outdoor weathering environments.

These tapes have no adhesive, but sticks to itself (self-fuses or self amalgamating) when stretched and wrapped onto itself. The tapes starts fully bonding immediately, and after several minutes cannot be unwound or removed without using a sharp knife or blade. This tape makes a waterproof, weatherproof and air tight protection.

This tape is available in oxide-red and black colors - other colors are available as a custom run. The triangular tape has a guideline stripe in the center which aids in achieving a 50% spiral wrap. Triangular levelwrap tapes provide a smooth surface on spiral wrapping, preventing the tape wrap area from snagging when pulling a wire or cable through a bundle or over objects or openings.

FlameShield™ tapes meeting A-A-59163, Mil-I-46852 and Mil-I-22444 provide superior electrical insulation with a minimum of 300 volts per mil (.001") of tape thickness at 365°F / 180°C. A 20mil tape therefore provides 6000 volts per wrap of insulation value. This tape is also used to wrap hydraulic connections and to make vibration resistant bumpers and spacers for wiring, cable, hose, pipes and lines. This tape is used to wrap and hold insulation in place on hot air ducts.

For MIL-I-22444 tapes the embedded sinusoidal fiberglass layer provides limited stretch of the tape during installation, ensuring that a consistent minimum thickness is achieved during installation opposed to a variable thickness that occurs when manually adding tension to the tape during human applied scenarios. Machine applied tape tends to be much more uniform in thickness due to the automated tensioning measurement feedback in the application machinery.

Supported/reinforced tape also prevents tape creep and fracturing when the tape is clamped with excessive force with either a connector backshell, or installation clamp on a hydraulic fitting. The tape tends to remains in place and without layer fracturing compared to non supported/reinforced versions of the tape (MIL-I-46852 and A-A-59163 versions).

The tape has a built-in fiberglass sinusoidal reinforcement limiting the amount of elongation (either a maximum of 15% or 25%).

Tapes meeting Mil-I-22444C provide superior electrical insulation with a minimum of 350 volts per mil (.001") of tape thickness at 365°F / 180°C. A 20mil tape therefore provides 7000 volts per wrap of insulation value.

This tape is also used to wrap hydraulic connections and to make vibration resistant bumpers and spacers for wiring, cable, hose, pipes and lines. This tape is used to wrap and hold insulation in place on hot air ducts. Makes an in-situ bushing for protecting wiring at the backshell clamp.

AA59163 MILI46852 Type I and Type II Silicone Tape

Links to Specific MIL Spec and A-A Commercial Spec Tapes:

Part 1

Links to Specific OEM Equivalent Tapes:

Part 2

Links to Specific OEM Equivalent Tapes:

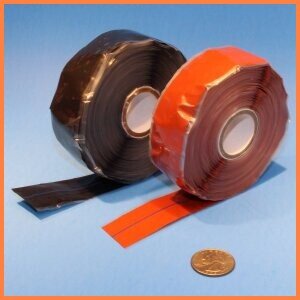

A-A-59163 Silicone Rubber Electrical Insulation Tape

Add CofC or Test Reports for Products

CofC and Test Report documentation can be added to your order using the cart.

Click Here to Add Documentation

A-A-59163 Commercial Spec Silicone Rubber Self Fusing Electrical Tape

MIL-I-46852 Silicone Tape Electrical Tape

Mil-I-46852 Mil Spec Silicone Rubber Self Fusing Electrical Tape

Add CofC or Test Reports for Products

CofC and Test Report documentation can be added to your order using the cart.

Click Here to Add Documentation

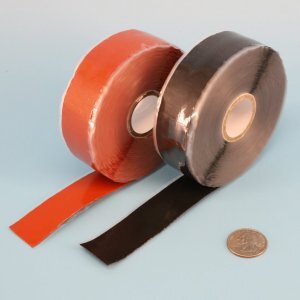

MIL-I-22444 silicone rubber electrical tape

MIL-I-22444 Electrical Tape Silicone Rubber

Add CofC or Test Reports for Products

CofC and Test Report documentation can be added to your order using the cart.

Click Here to Add Documentation

MIL-I-22444C MIL Spec Silicone Rubber Self Fusing Electrical Tape - Supported / Reinforced (Type I Only)

Silicone Rubber Self Fusing Electrical Tape with National NSN / NATO Stock Number MIL Spec Tapes

CALL FOR PRICING

These tapes are not interchangeable. The NSN number specifies other parameters of the tape such as thickness, profile, width, reinforcement, rubber composition, etc.

NSN Numbers: Color Our Part Number

5970-00-082-3226          Black                      T-SR-NSN-00-082-3226
5970-00-177-1627          Black                      T-SR-NSN-00-177-1627
5970-00-446-3928          Black                      T-SR-NSN-00-446-3928
5970-00-446-8928          Red                        T-SR-NSN-00-446-8928
5970-00-480-1329          Red                        T-SR-NSN-00-480-1329
5970-00-782-5056          Red                        T-SR-NSN-00-782-5056
5970-00-839-0824          Red                        T-SR-NSN-00-839-0824
5970-00-841-1172          Red                        T-SR-NSN-00-841-1172
5970-00-949-4846          Red                        T-SR-NSN-00-949-4846
5970-00-955-9976          Black                      T-SR-NSN-00-955-9976
5970-01-140-5672          Red                        T-SR-NSN-01-140-5672

5970-01-142-8454 Red T-SR-NSN-01-142-8454

5970-01-147-3595          Red or Black               T-SR-NSN-01-147-3595
5970-01-250-8756          Red                        T-SR-NSN-01-250-8756
5970-01-259-5830          Red or Black               T-SR-NSN-01-259-5830

5970-01-263-0373 Red T-SR-NSN-01-263-0373

5970-01-263-3931 Black T-SR-NSN-01-263-3931

5970-01-273-6030 Red or Black T-SR-NSN-01-273-6030
5970-01-276-5277 Red or Black T-SR-NSN-01-276-5277

5970-01-286-7456          Red                        T-SR-NSN-01-286-7456
5970-01-342-8289          Black                      T-SR-NSN-01-342-8289
5970-01-396-1601          Red                        T-SR-NSN-01-396-1601
5970-01-432-6018          Red                        T-SR-NSN-01-432-6018

5970-01-450-4130          Black                      T-SR-NSN-01-450-4130
5970-01-491-8992          Black                      T-SR-NSN-01-491-8992
5970-01-495-5211          Black                      T-SR-NSN-01-495-5211
5970-01-541-9092          Red or Black               T-SR-NSN-01-541-9092
9320-01-552-7024          Red or Black               T-SR-NSN-01-552-7024
5970-01-560-3208          Red or Black               T-SR-NSN-01-560-3208

5970-01-596-7929          Red or Black               T-SR-NSN-01-596-7929
5970-01-600-6091          Red                        T-SR-NSN-01-600-6091
8030-01-587-1885          Red                        T-SR-NSN-01-587-1885
5970-14-459-8605          Black                      T-SR-NSN-14-459-8605

5330-01-479-4233 Black T-SR-NSN-01-479-4233

9320-01-310-3746 Black T-SR-NSN-01-310-3746

Download PDF Catalog Page

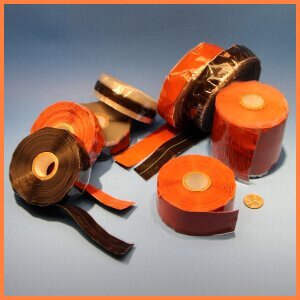

NSN Nato National Stock Number Silicone Rubber Electrical Insulation Tape
