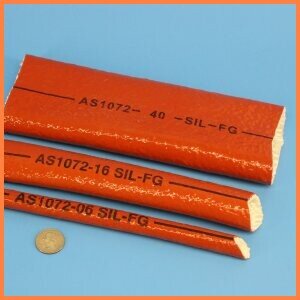

Aviation Firesleeve Equivalent - SAE AS1072F
Parker Stratoflex - Aeroquip - Bentley Harris - Resistoflex - Northrup Grumman - Thermotubix - Manuli - General Dynamics
Our brand equivalent firesleeve is manufactured to the same SAE AS1072F latest standards in order to allow hose assemblies to pass the fire testing standards of AS1055D; and the requirements of FAA TSO - C53a and TSO - C75. Meets 14 CFR 25.869(a)(4); Appendix F, Part 1(b)(7) (60-degree flammability Test).
500°F / 260°C Continuous Exposure; 2200°F / 1205°C Excursions; 3000°F / 1650°C Peak Short Term Exposure
It may be used for all fuel, oil, hydraulic, fire extinguisher and prop feathering lines. "Fire-proof" hose lines, as defined by the FAA, must withstand a direct flame for fifteen minutes under specified flow conditions without failure. Fire-resistant lines must withstand a 5 minute exposure under these conditions.
Fire-proof hose and lines are obtained when the proper size Firesleeve is selected and properly assembled over the hose and using the appropriate sized clamps.
The standard colors for firesleeve are oxide-red and black; other colors may be available or can be produced as a custom run: - silver-grey, blue, yellow and green. Firesleeve is available in sizes ranging from 0.25" ID (Inside Diameter) through 5" ID.
All trademarks and trade names are property of their respective owners.
Parker Stratoflex 2650 Aviation Firesleeve Equivalent
Parker Stratoflex 2650 Part Numbers (equivalent sleeve marked with SAE marking):
2650-04, 2650-06, 2650-08, 2650-10, 2650-12, 2650-14, 2650-16, 2650-18, 2650-20, 2650-22, 2650-24, 2650-26, 2650-28, 2650-30, 2650-32, 2650-36, 2650-40, 2650-42, 2650-44, 2650-46, 2650-48, 2650-52, 2650-56, 2650-60, 2650-64
Aeroquip AE102 Equivalent Firesleeve - SAE AS1072E Aerospace/Aviation Grade
Aeroquip Part Numbers (equivalent sleeve marked with SAE marking):
AE102-04, AE102-05, AE102-06, AE102-07, AE102-08, AE102-09, AE102-10, AE102-12, AE102-14, AE102-16, AE102-18, AE102-20, AE102-22, AE102-24, AE102-26, AE102-28, AE102-30, AE102-32, AE102-36, AE102-40, AE102-42, AE102-44, AE102-46, AE102-48, AE102-52, AE102-56, AE102-60, AE102-64
Federal Mogul Bentley Harris Fyrejacket Equivalent Firesleeve - SAE AS1072E Aerospace/Aviation Grade
Federal Mogul Bentley Harris Part Numbers (equivalent sleeve marked with SAE marking):
4001000610S, 4001001010S, 4001001310S, 4001001610S, 4001001910S, 4001002210S, 4001002510S, 4001002910S, 4001003210S, 4001003510S, 4001003810S, 4001004110S, 4001004410S, 4001004810S, 4001005110S, 4001005710S, 4001006410S, 4001006710S, 4001007010S, 4001007310S, 4001007610S, 4001008310S, 4001008910S, 4001009510S, 4001010210S
Resistoflex R20300 Equivalent Firesleeve - SAE AS1072E Aerospace/Aviation Grade
Resistoflex Part Numbers (with SAE marking):
R20300-.250, R20300-.312, R20300-.375, R20300-.438, R20300-.500, R20300-.562, R20300-.625, R20300-.688, R20300-.750, R20300-.812, R20300-.875, R20300-1.000, R20300-1.125, R20300-1.250, R20300-1.375, R20300-1.500, R20300-1.625, R20300-1.750, R20300-1.875, R20300-2.000, R20300-2.250, R20300-2.375, R20300-2.500, R20300-2.625, R20300-2.750, R20300-2.875, R20300-3.000, R20300-3.250, R20300-3.500, R20300-3.750, R20300-4.000, R20300-4.500, R20300-5.000, R20300-6.000
Northrup Grumman GS530BH Equivalent Firesleeve - SAE AS1072E Aerospace/Aviation Grade
Northrup Grumman Part Numbers (with SAE marking):
GS530BH250, GS530BH312, GS530BH375, GS530BH438, GS530BH500, GS530BH562, GS530BH625, GS530BH688, GS530BH750, GS530BH812, GS530BH875, GS530BH1000, GS530BH1125, GS530BH1250, GS530BH1375, GS530BH1500, GS530BH1625, GS530BH1750, GS530BH1875, GS530BH2000, GS530BH2250, GS530BH2375, GS530BH2500, GS530BH2625, GS530BH2750, GS530BH2875, GS530BH3000, GS530BH3250, GS530BH3500, GS530BH3750, GS530BH4000, GS530BH4500, GS530BH5000, GS530BH6000
Thermotubix-Aero Equivalent Firesleeve - SAE AS1072E Aerospace/Aviation Grade
Thermotubix Part Numbers (with SAE marking):
Thermotubix-Aero-8, Thermotubix-Aero-9.5, Thermotubix-Aero-12.7, Thermotubix-Aero-16, Thermotubix-Aero-19, Thermotubix-Aero-22, Thermotubix-Aero-25, Thermotubix-Aero-32, Thermotubix-Aero-38, Thermotubix-Aero-45, Thermotubix-Aero-51, Thermotubix-Aero-57, Thermotubix-Aero-64, Thermotubix-Aero-76, Thermotubix-Aero-89, Thermotubix-Aero-101
Manuli FSL JP24A05 Equivalent Firesleeve - SAE AS1072E Aerospace/Aviation Grade
Manuli Part Numbers (with SAE marking):
JP24A05013I099, JP24A05016I099, JP24A05019I099, JP24A05022I099, JP24A05025I099, JP24A05032I099, JP24A05038I099, JP24A05045I099, JP24A05051I099, JP24A05064I099, JP24A05076I099.
Extended part numbers:
JP24A05006I099, JP24A05008I099, JP24A05010I099, JP24A05011I099, JP24A05014I099, JP24A05018I099, JP24A05029I099, JP24A05035I099, JP24A05040I099, JP24A05041I099, JP24A05048I099, JP24A05057I099, JP24A05067I099, JP24A05070I099, JP24A05073I099, JP24A05052I099, JP24A05056I099, JP24A05060I099
General Dynamics Land Systems Insulation Sleeve Equivalent Firesleeve - SAE AS1072E Aerospace/Aviation Grade
General Dynamics Part Numbers (with SAE marking):
LS1124056, LS1124057, LS1124058, LS1124061, LS1124062, LS1124063
