Products > Cured Products
Silicone Rubber Coated Fiberglass Fabrics - 1 and 2 side coated
500°F / 260°C Continuous Exposure: Higher Intermittent
FlameShield™ High temperature, heat and flame resistant silicone rubber coated fiberglass fabrics are used in a variety of applications to form protective covers and shields to protect equipment and assets from extreme environmental and process exposures. High temperature and heat resistant. Excellent protection against welding spatter, sparks, molten metal splash and slag. The coating on these fabrics is uniform and a surface texturization is present from the underlying fiberglass weave.
Can be cut into shapes and fastened into place with standard fasteners such as rivits, screws and bolts and also sewn with industrial sewing machines.
These fabrics are available in 40" and 60" roll widths. Available in cut to length by-the-yard or in rolls of 25, 50, 100 and 150 foot lengths.
Some fabrics meet NRC 1.36 for use in nuclear facilities.

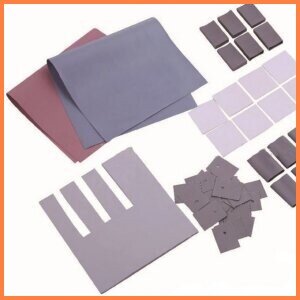

Semiconductor Heat Transfer Fabric - High Thermal Conductivity
Silicone Rubber Coated Fiberglass / Kapton Fabric - 2 side coated
FlameShield™ High thermal conductivity fabric is designed as a heat transfer fabric for mounting semiconductors.
Can be easily cut into shapes.
This fabric is available in a 16" roll width.
Silicone Rubber Coated Fiberglass Fabric - 1 side coated
This fabric is available in a 40" roll width. Weight is 50oz/square yard or 98oz/square yard. Available cut to length by-the-yard or in full roll lengths.

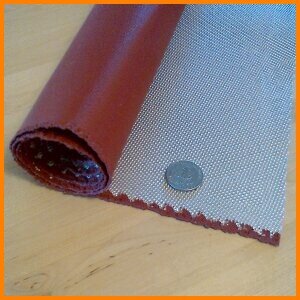

1 side coated - 50oz/square yard
This fabric is produced in a 40" / 101cm width. The Weight is 50oz/square yard or 1695grams/sq metre . Available cut to custom lengths in 1 yard or 1 metre increments, or in 50 yard / 150 foot or 45.7 metre roll lengths.

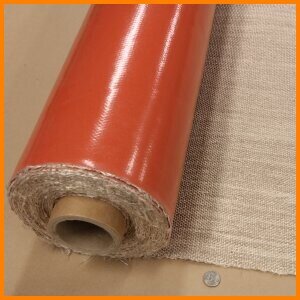

1 side coated - 98oz/square yard
This fabric is available in a 40" roll width. Weight is 98oz/square yard. Available cut to length by-the-yard or in 25 yard / 75 foot roll lengths. Longer roll lengths may be available please inquire.

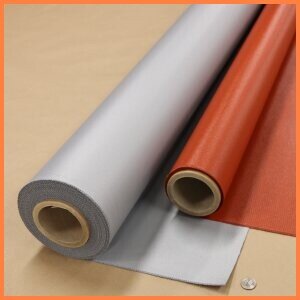

Silicone Rubber Coated Fiberglass Fabric - 2 side coated
Most of the light and medium fabrics are available in a 60" roll width. The Heavy-duty versions are usually available in both 60" and 40" roll widths.
Light weight is 8 to 18 oz/square yard, medium is 18 to 30 oz/square yard and heavy duty is 30 to 100 oz/square yard. Available cut to length by-the-yard or in full roll lengths.
Light Duty
2 side coated - 8.5 to 18 oz/square yard
- 8.5 oz .009" thick silver/grey
- 15 oz .014" thick silver/grey
- 18 oz .015" thick silver/grey and oxide-red
These fabrics are available in a 60" roll width. Available cut to length by-the-yard or in 50 yard / 150 foot roll lengths.
Medium Duty
2 side coated - 18 to 26 oz/square yard
- 18 oz .018" thick silver/grey or oxide-red
- 26 oz .019" thick silver/grey and oxide-red
These fabrics are both available in a roll width of 60". Available cut to custom length by-the-yard or in 50 yard / 150 foot roll lengths.
Heavy Duty
2 side coated - 32 to 96 oz/square yard
32 oz .032" thick silver/grey or oxide-red 45 oz .060" thick oxide-red in 40" and 60" widths 65 oz .070" thick oxide-red in 40" and 60" widths 96 oz .125" thick oxide-red in 40" width
These fabrics are available in 40" and 60" roll widths. Weight is from 32 to 96 oz/square yard. Available cut to length by-the-yard or in 50 yard / 150 foot roll lengths.

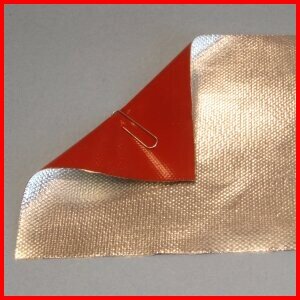

Aluminum Film Coated Fiberglass Radiant Heat Reflective Fabric with Silicone Rubber Vapor Barrier
Dual-Coat™ high temperature fabric is a high temperature, heat resistant dual coated (aluminum film one side - silicone rubber one side) fabric that reflects radiant heat and is the perfect protection material for equipment covers such as cylinders bellows, that require a vapor barrier on the side opposite the heat reflecting side.
This heat reflective fabric reflects 95% or more of the radiant heat that contacts its surface. Constructed from a high-temperature base fabric which is then coated with aluminized PET film.
Designed for long term continuous operation at 500°F / 260°C, this fabric will withstand short duration exposure to higher temperatures.
Designed for long term continuous operation at 500°F / 260°C, this fabric will withstand short duration exposure to higher temperatures.

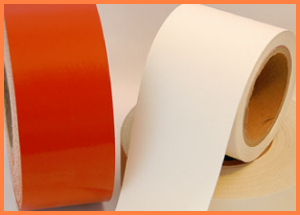

Silicone Rubber Coated Fiberglass Fabric - 2 side coated Premium Grade
Gasket & Conveyor Belt Applications
High Temperature Heat, Weld Splatter, Grinding Spark resistant
- 10 oz .009" thick white
- 16 oz .015" thick red or white
- 22 oz .020" thick red
- 22 oz .022" thick red or white
- 24 oz .023" thick red
- 32 oz .030" thick red
- 41 oz .040" thick white
These fabrics are nominal 39" roll width - see PDF for specific width information..
Silicone Rubber Coated Fiberglass Fabric - 2 side coated - FDA Food Grade
This fabric is available in a 60" roll width.
