Products > Cured Products > Tapes: Electrical - Industrial / Aviation / Military
Branded Equivalent Silicone Rubber Self Fusing Electrical Tape - Part 2
meeting A-A-59163 / MIL-I-46852 & MIL-I-22444 Specifications
Branded Equivalent Silicone Rubber Self Fusing Electrical Tape meeting A-A-59163 / MIL-I-46852 & MIL-I-22444 Specifications
365°F / 180°C Continuous Exposure: Higher Intermittent
FlameShield™ rectangular (Type I) and triangular (Type II) profile silicone rubber self-fusing self-amalgamating compression tapes meeting various OEM manufacturer's and A-A-59163, Mil-I-46852 or Mil-I-22444 specification are used for a variety of critical electrical wiring and cable splicing and protection jobs. Especially suited for aviation and marine environments, as well as outdoor weathering environments.
The tape has no adhesive, but sticks to itself (self-fuses or self amalgamating) when stretched and wrapped onto itself. The tapes starts curing within minutes, and after several hours cannot be unwound or removed without using a sharp knife or blade. This tape makes a waterproof, weatherproof and air tight protection.
This tape is available in oxide-red and black colors - other colors are custom run. The triangular tape has a guideline stripe in the center which aids in achieving a 50% spiral wrap. Triangular levelwrap tapes provide a smooth surface on spiral wrapping, preventing the tape wrap area from snagging when pulling a wire or cable through a bundle or over objects or openings.
FlameShield™ tapes meeting A-A-59163, Mil-I-46852 and Mil-I-22444 provide superior electrical insulation with a minimum of 300 volts per mil (.001") of tape thickness at 365°F / 180°C. A 20mil tape therefore provides 6000 volts per wrap of insulation value. This tape is also used to wrap hydraulic connections and to make vibration resistant bumpers and spacers for wiring, cable, hose, pipes and lines. This tape is used to wrap and hold insulation in place on hot air ducts.
Links to Specific OEM Group 2 Equivalent Tapes:
- Lockheed-Martin 5-00857 & 5-00615
- Lockheed-Martin 6084744
- Lockheed-Martin MMS-J517
- Lockheed-Martin P5189
- Rockwell International ST0130RB0078
- Rohr Goodrich Aerostructures RMS315
- Rolls-Royce Allison 23065305
- RL6000SA / RL6000SB Stretchtape Kirkhill TA Esterline
- Saint Gobain CHR4440
- Simrit ARMET GUIDELINE Freudenberg NOK
- Simrit Freudenberg NOK MIL-I-22444
- Thomas&Betts TBFT201 TBFT421
- Tyco Electronics TE Connectivity 608036
Add CofC or Test Reports for Products
CofC and Test Report documentation can be added to your order using the cart.
L-3 Communications Tape, 40014362 Electrical, Silicone, Self-Fusing, Non-Reinforced
L-3 Communications tape (part numbers 40014362-000, 40014362-001, 40014362-002, 40014362-003) is a silicone rubber self-fusing compression tapes meeting MIL and commercial specifications.
Lockheed-Martin Astronautics MMS J517 Silicone Rubber Self Fusing Tapes
FlameShieldä rectangular and triangular profile tapes meeting Lockheed-Martin Astronautics MMS J517 specification.
Lockheed-Martin Space Systems 5-00857 & 5-00615 Silicone Rubber Self Fusing Tapes
FlameShieldä rectangular and triangular profile tapes meeting Lockheed-Martin Space Systems 5-00857 & 5-00615 specification.
Lockheed-Martin Systems Integration 6084744 Silicone Rubber Self Fusing Tapes NSN 5970-01-596-7929
FlameShieldä rectangular and triangular profile tapes meeting Lockheed-Martin Systems Integration 6084744 specification (NSN 5970-01-596-7929).
Lockheed-Martin Tactical Systems P5189 Silicone Rubber Self Fusing Tapes
FlameShieldä rectangular and triangular profile tapes meeting Lockheed-Martin Tactical Systems P5189 specification.
MM96330 / GL30R67W00 Systems and Electronics Silicone Rubber Self Fusing Electrical Tape
MM96330 and GL30R67W00 silicone rubber self-fusing self-amalgamating electrical tapes meet MIL and commercial specifications.
This tape is available in oxide-red only.
MOX 600 R Series & T Series Equivalent Silicone Rubber Electrical Insulating Tapes
FlameShield™ MOX 600 Series equivalent rectangular and triangular profile silicone rubber self-fusing compression tapes meeting MIL and commercial specification.
· Type I Tapes with the following part numbers: 56756, 57063, 57090, 50005, 50006, 57161, 50022, 50039, 57806, 612-1, 615-.75, 615-1, 620-.5, 620-.75, 620-1, 620-1.25, 630-.5, 630-1
· Type II Tapes with the following part numbers: 50014, 50215, 50361, 53304, 50573, 56517, 56265, 600R and 600T levelwrap series; 602-1, 603-1, 604-1, 604-1.25, 605-1.25, 605-1.5, 606-1.5, 605-1, 606-1, 607-1
MS70T09S NSN 5970-00-955-9976 Silicone Rubber Electrical Insulation Tape
FlameShieldä MS70T09S / NSN 5970-00-955-9976 silicone rubber tape meets MIL and commercial specification.
Nimikkeistokeskus NCB Finland 10134254 Silicone Electrical Insulating Tape
FlameShieldä Nimikkeistokeskus NCB Finland 10134254 triangular profile silicone rubber self-fusing compression tapes meeting MIL and commercial specification.
Polamco 100P323 Equivalent Silicone Rubber Self-Fusing Electrical Tape meeting MIL-I-22444
FlameShieldä Polamco 100P323 equivalent silicone rubber electrical tapes meet MIL-I-22444 specifications.
RL6000SA / RL6000SB Stretchtape Kirkhill TA Esterline Equivalent Silicone Elastomer Tape
FlameShieldä RL6000SA and RL6000SB Stretchtape Kirkhill TA Esterline equivalent silicone elastomer tapes meet MIL-I-22444 specifications.

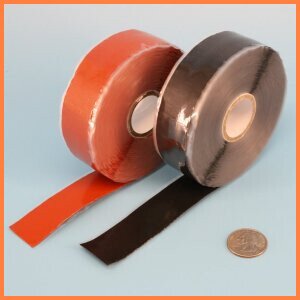

Rockwell International ST0130RB0078 Silicone Rubber Self Fusing Tapes
FlameShieldä rectangular and triangular profile tapes meeting Rockwell International ST0130RB0078 specification.
Rohr Goodrich Aerostructures RMS315 RMS-315 Silicone Rubber Self Fusing Electrical Tape
FlameShieldä Rohr Goodrich Aerostructures RMS315 / RMS-315 silicone rubber self-fusing tape meets MIL and commercial specification.
Rolls-Royce Allison 23065345 Silicone Rubber Self Fusing Electrical Tape
FlameShieldä Rolls-Royce Allison 23065345 silicone rubber self-fusing tape meet MIL and commercial specification.
CHR4440 Silicone Rubber Self Fusing Electrical Tape
FlameShieldä CHR4440 equivalent triangular (Type II) profile silicone rubber self-fusing self-amalgamating compression tapes meeting MIL & commercial specification.

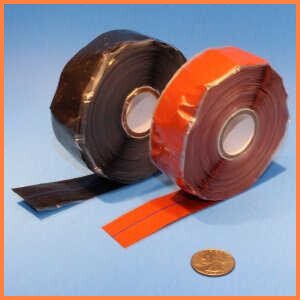

Seal-Tite™ Fusion Wrap Equivalent Silicone Elastomer Tape P29950 / P28566 / P40630 / P36728
FlameShieldä P29950 / P28566 / P40630 / P36728 equivalent silicone rubber self-fusing compression tapes meet many MIL and other commercial specifications.
Simrit® Freudenberg NOK ARMET® GUIDELINE® Equivalent Type I & Type II Self Fusing Electrical Insulating Silicone Rubber Tape
Simrit® Freudenberg NOK ARMET® GUIDELINE® equivalent silicone rubber self-fusing compression tapes meet many MIL and other commercial specifications .
SIMRIT® is a registered trademark of Freudenberg NOK.
Simrit® Freudenberg NOK Equivalent MIL-I-22444 Controlled Elongation Self Fusing Electrical Insulating Silicone Rubber Tape
Simrit® Freudenberg NOK equivalent silicone rubber self-fusing tape meeting MIL & commercial specifications.
This is a supported tape, with a sinusoidal fiberglass reinforcement core which provides controlled elongation.
This is a supported tape, with a sinusoidal fiberglass reinforcement core which provides controlled elongation.
SIMRIT is a registered trademark of Freudenberg NOK
Thomas&Betts Equivalent Silicone Rubber Isolation Tape
Equivalent to TBFT201-36 & TBFT421-36. Available in Oxide-red or Black.
Tyco Electronics TE Connectivity 608036 Equivalent Silicone Fusion Electrical Insulation Tape
FlameShieldä TE 608036 equivalent silicone self-fusing self-amalgamating tape meets MIL and commercial specifications.
TYT200-1 ColeFlex Cole-Pak Self Fusing "No Heat" Silicone Tape
FlameShieldä TYT200-1 silicone rubber self-fusing compression tapes meet many MIL, commercial and proprietary specifications.
Silicone Rubber Flame Retardant Electrical Insulation tape meeting UL V-0
Silicone rubber electrical insulation tape meeting UL V-0 FR flame retardant rating. Reach and RoHS complaint.
